GEAIR 20-4

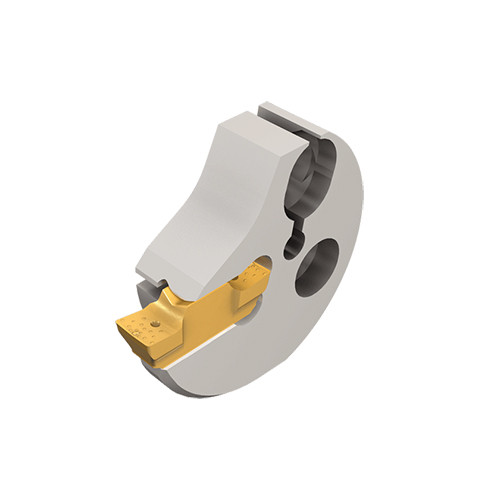

Internal grooving and turning adapters for GEMI and GEPI inserts.

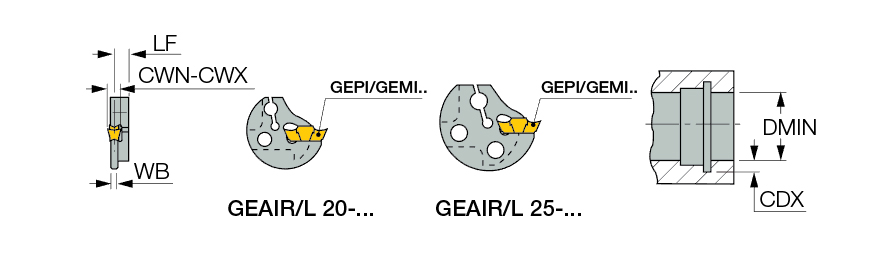

| Cutting Width Minimum (CWN) | 0.118″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.157″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.118″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.787″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.152″ | Measurement Type | Inch |
Product Features
| Family Description | Internal grooving and turning adapters for GEMI and GEPI inserts. | Country of Origin | Israel |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
0.026
