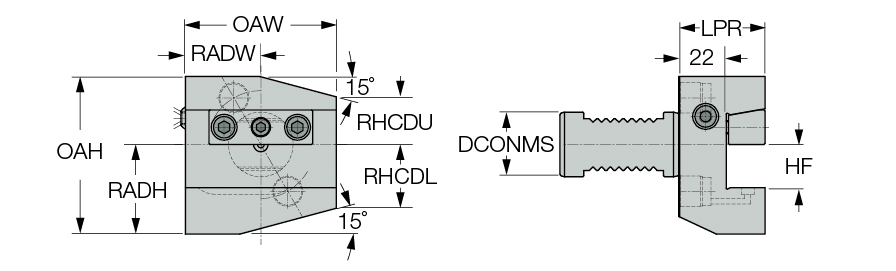

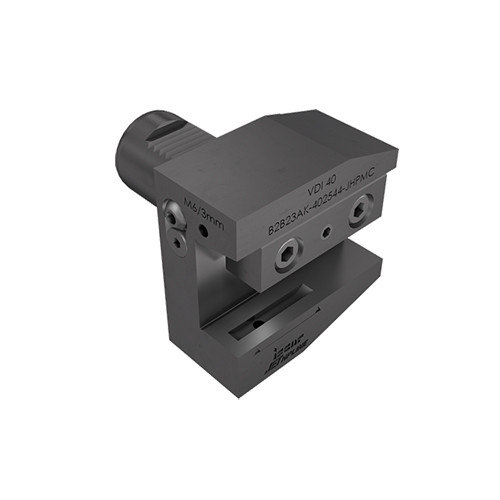

VDI40 B2B3AK-402544-JHPMC
Radially oriented, short, left-hand, wedge clamping holders with coolant channels and VDI DIN69880 shanks for square shank tools.
| Overall Length (OAL) | 107 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | HSK -T (ISO 12164-3) |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
Product Features
| Family Description | Radially oriented, short, left-hand, wedge clamping holders with coolant channels and VDI DIN69880 shanks for square shank tools. | Country of Origin | China |
| Remarks | Form B2 radial L.H. short, form B3 radial overhead R.H. short. |
Shipping Info
Package Weight
5.408
