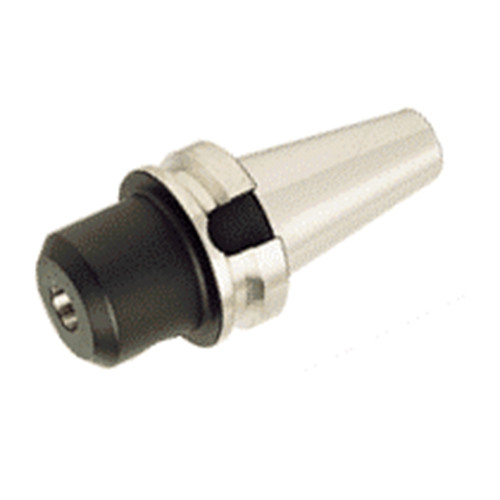

BT40 EM 3/4X2.937

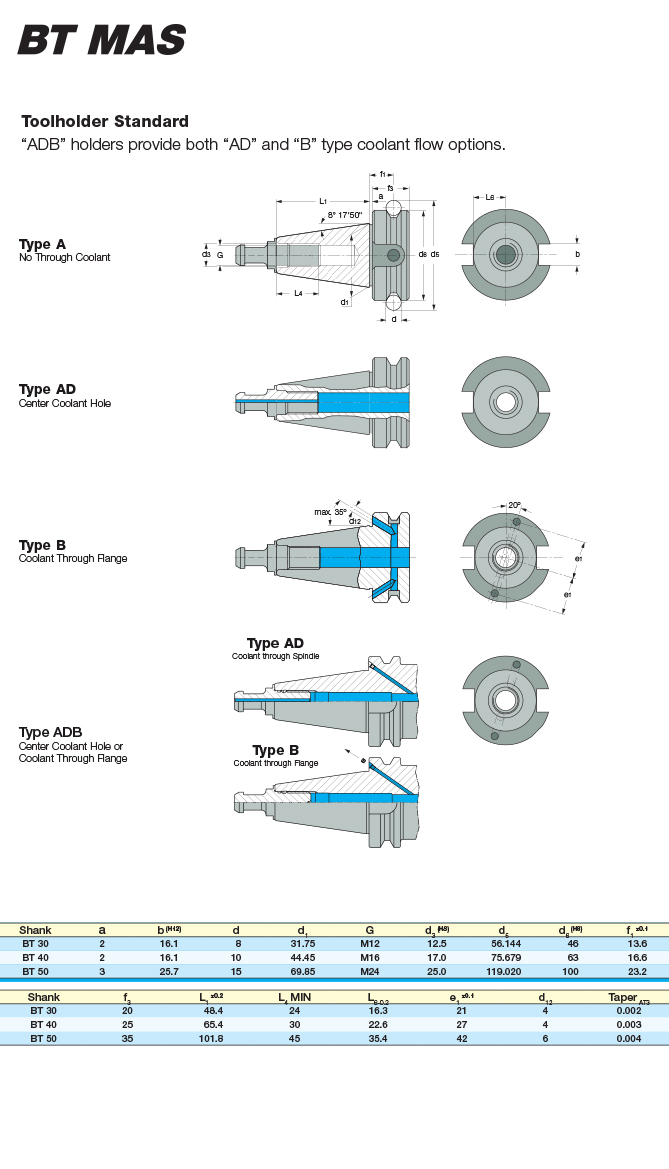

DIN6359 / DIN 1835 form B Weldon Endmill Holders with BT MAS-403 ADB tapered shanks

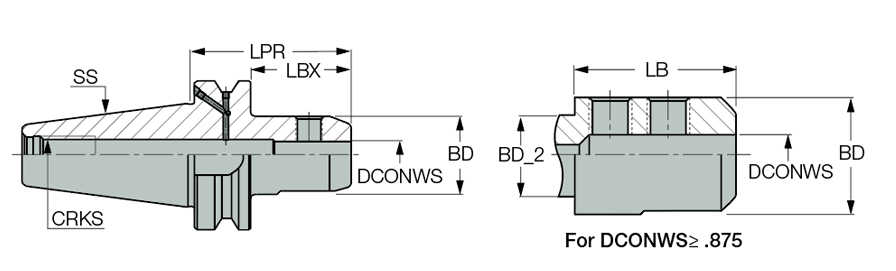

| Connection Size (CSI) | R8 | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Shank Size (SS) | 40 |
| Body Diameter (BD) | 2.047″ | Tool Type | BT |
| Protruding Length (LPR) | 2.937″ | Body Material | Steel |
| Overall Length (OAL) | 5.512″ | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | DIN6359 / DIN 1835 form B Weldon Endmill Holders with BT MAS-403 ADB tapered shanks | Country of Origin | Italy |
Shipping Info
Package Weight
3.018
