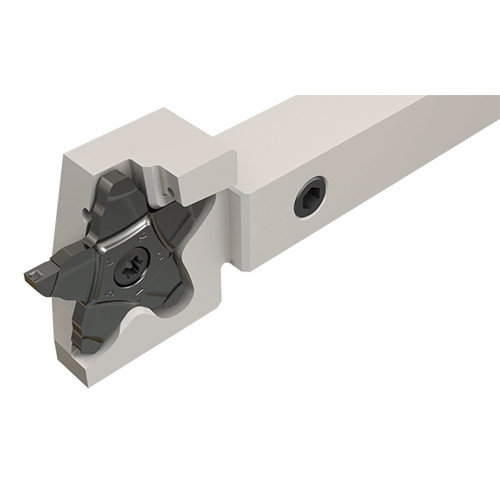

PCHL 19-34-JHP
Parting Off Holder; 5.32″ OAL × 0.059″ CW Min. × 0.157″ CW Max. × 0.394″ Max Depth ; Steel
| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | Face Grooving | Parting | |
| Shank Width (B) | 3/4″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.059″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.157″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 5.32″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 1.3″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.394″ | Tool Assembly Length (LTA) | 1.791″ |
| Cutting Position | External |
Product Features
| Family Description | Grooving, parting and recessing tools carrying PENTA inserts with channels for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Additional Fees and Notes
1
Hazard Code
A
Shipping Notes
Additional Charges
Package Weight
0.915
