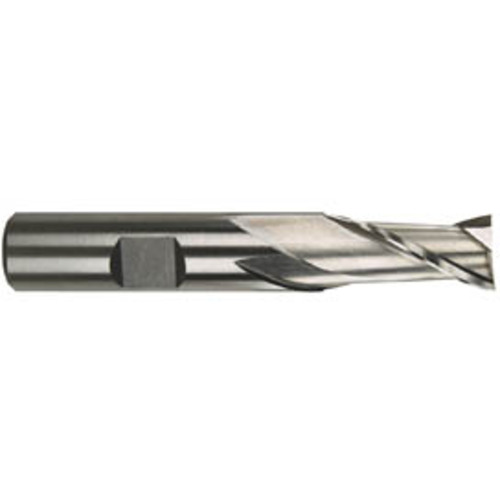

1 1/2″ × 1 1/4″ × 1 5/8″ × 4 1/8″ 2 Flute Single End HSSCo Finishing Center Cutting End Mill-Uncoated Series/List #4580
SQ End Mill; 1-1/2″ Dia. × 1-5/8″ LOC × 1-1/4″ Shank Dia. × 4-1/8″ OAL ; 2 FL ; HSSCo ; Uncoated ; Series 4580
| Cutting Diameter (DC) | 1-1/2″ | Usable Length (LU) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Single End |
| Overall Length (OAL) | 4-1/8″ | Length Group | Regular |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1.5″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4580 |
Product Features
| Remarks | •M-42 8% Cobalt 2-Flute •Single End Mills • Center Cutting | Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Length
7.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.332
