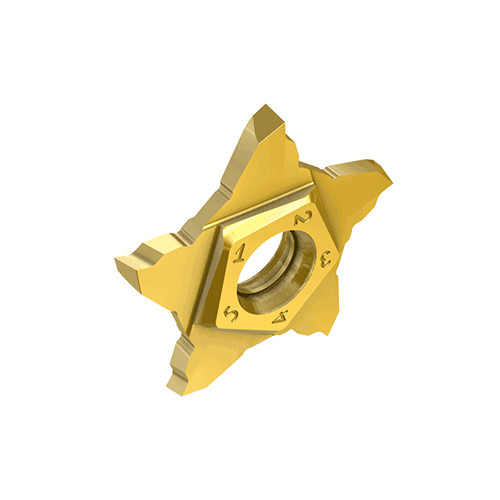

PENTA 24R150P06D IC1008
Inserts with 5 cutting edges for parting soft materials and thin walls, with minimized burr size. Most economical system due to 5 cutting edges.

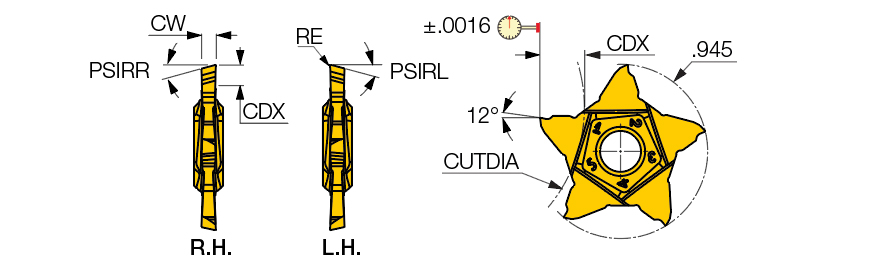

| Cutting Width (CW) | 0.059″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Corner Radius (RE) | 0.002″ | Insert Rake Angle (GAN) | 12 Degrees |
| Cutting Depth Maximum (CDX) | 0.197″ | Chip Breaker Type | P |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN | Angle | 12 Degrees |
| Grade | IC1008 | Work Piece Parting Diameter Maximum (CUTDIA) | 0.433″ |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Max. Grooving Feed (fg(max)) | 0.002 ″/rev | Insert Width (W1) | 0.157″ |
Product Features
| Family Description | Inserts with 5 cutting edges for parting soft materials and thin walls, with minimized burr size. Most economical system due to 5 cutting edges. | Country of Origin | Israel |

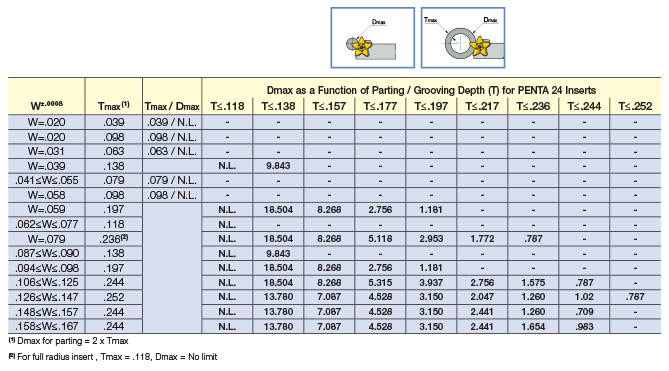

| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.021
