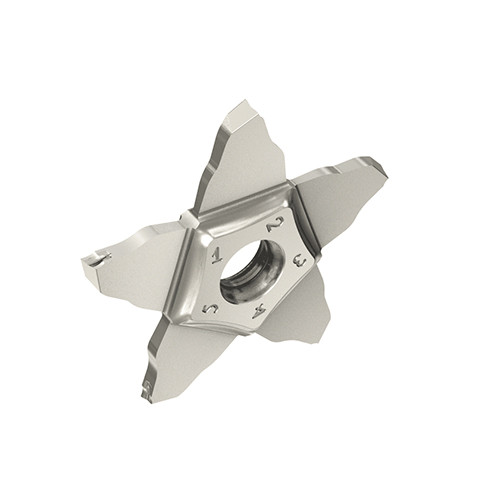

PENTA 34R200J15D IC908
Insert with 5 cutting edges, for parting tubes, small and thin-walled parts. Most economical system available.

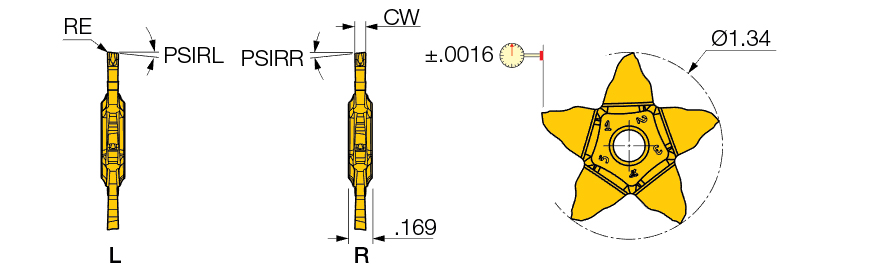

| Cutting Width (CW) | 0.079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius (RE) | 0.0039″ | Chip Breaker Type | J |
| Cutting Depth Maximum (CDX) | 0.335″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |

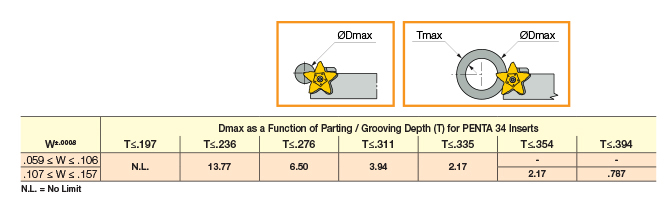

| Coating | TiAlN | Work Piece Parting Diameter Maximum (CUTDIA) | 0.709″ |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Application | | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.169″ |
| Max. Grooving Feed (fg(max)) | 0.0035 ″/rev |
Product Features
| Family Description | Insert with 5 cutting edges, for parting tubes, small and thin-walled parts. Most economical system available. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.050
