BT40-RSG 8-155-M75

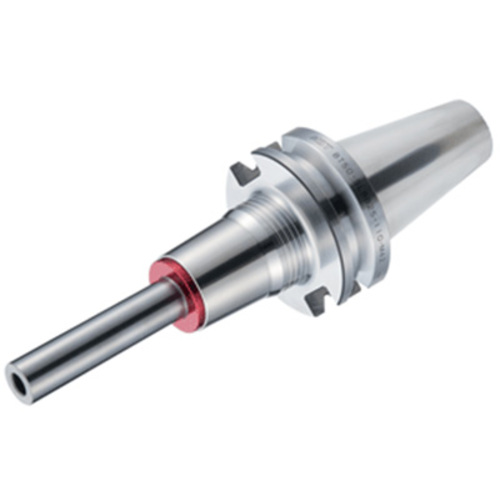

TungFlex modular tooling system incorporated carbide arbor with BT shank

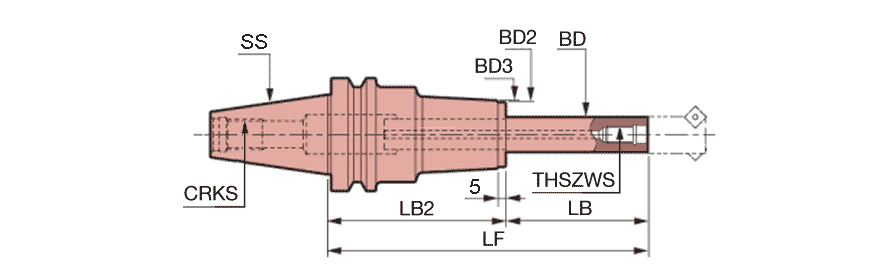

| Shank Size (SS) | 40. | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 75 mm | Nose Diameter | 220.4 mm |
| Body Diameter (BD) | 15 mm | Overall Length (OAL) | 155 mm |
| Application | | Tapered shape interface | | Measurement Type | Metric |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Material | Steel |
| Body Length_2 (LB_2) | 80 mm |
Product Features
| Family Description | TungFlex modular tooling system incorporated carbide arbor with BT shank | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
