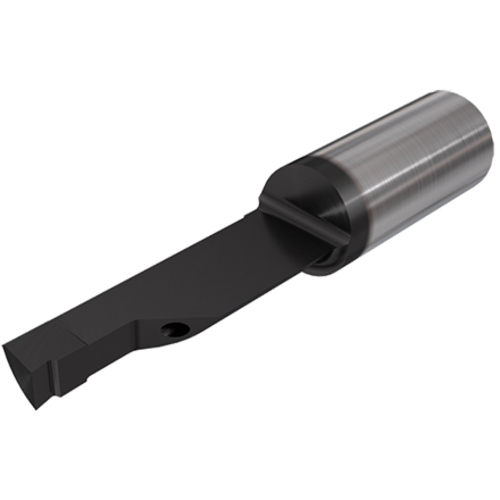

PICJ RF30D8T20-20 IC908
PICCO-JETCUT mini inserts with an Internal Coolant Channels for deep face grooving at Dmin .591″

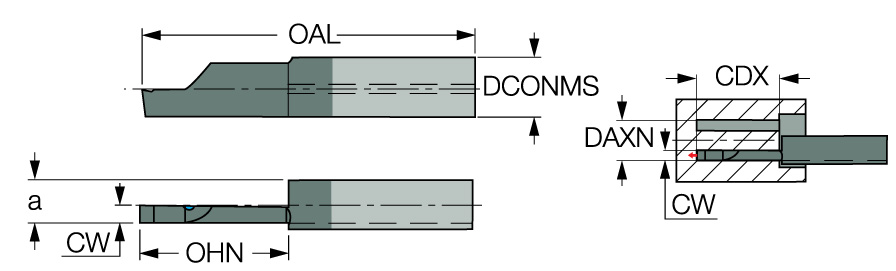

| Connection Diameter Machine Side (DCONMS) | 0.276″ | Application | | Face Grooving | Int. Face Grooving | |
| Cutting Width (CW) | 0.118″ | Tool Type | Solid, Turning & Grooving |
| Cutting Depth Maximum (CDX) | 0.748″ | Max. Face Grooving Feed (ffg(max)) | 0.002 ″/rev |
| Overall Length (OAL) | 1.378″ | Min. Face Grooving Feed (ffg(min)) | 0.0008 ″/rev |
| Cutting Direction (HAND) | Right Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.31″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.232″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overhang Minimum (OHN) | 0.787″ |
Product Features
| Family Description | PICCO-JETCUT mini inserts with an Internal Coolant Channels for deep face grooving at Dmin .591″ | Country of Origin | Israel |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request All inserts are with sharp corners PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Additional Fees and Notes
0
Package Weight
13
