IHPR 160-800-19

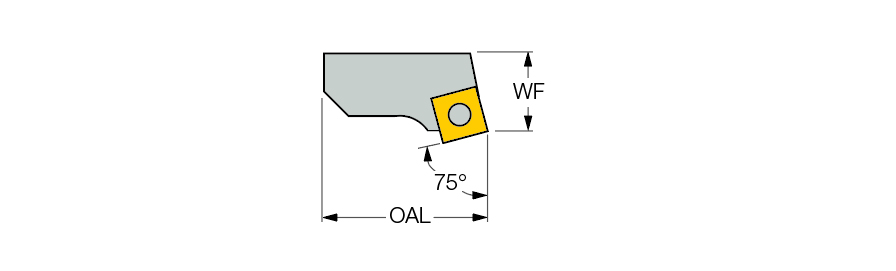

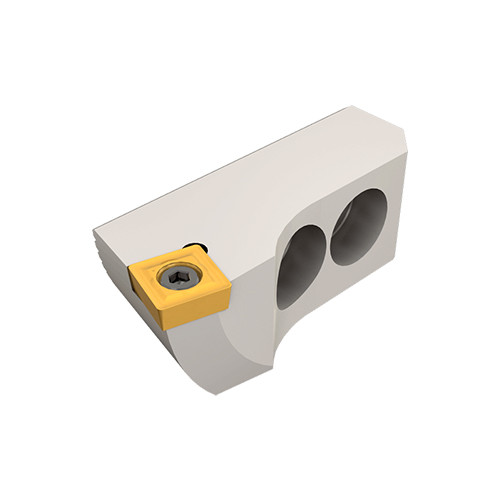

75° rough boring toolholders used on the MB modular boring system.
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 6.299″ | Tool Type | Indexble Boring heads |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 31.496″ | Nose Diameter | 3/4″ |
| Shank Size Machine Side | 3/4″ | d_max | 31.496″ |
| Master Insert Identification (MIID) | SNMG 64.. | Internal/External | Internal |
| Body Material | Steel | Measurement Type | Inch |
| Application | | Int. 90° Square 75° Approach | | Grade | 4560074 |
Product Features
| Family Description | 75° rough boring toolholders used on the MB modular boring system. | Country of Origin | Italy |
Shipping Info
Package Weight
1.367
