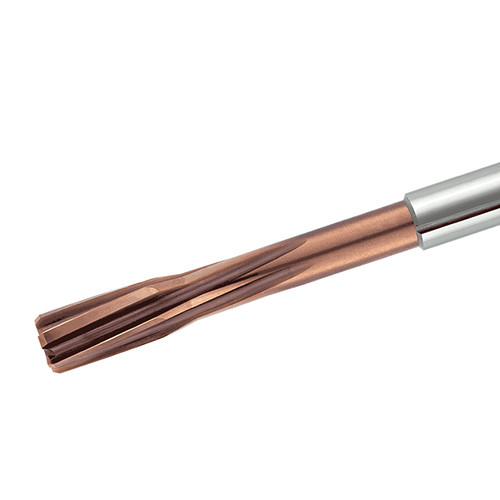

RM-MTR-0450-H7N-CS-C EVO
Chucking Reamer; 4.5 mm Dia. × 6 mm Shank Dia. × 76 mm OAL ; 4 FL ; evotec for reamers UOP

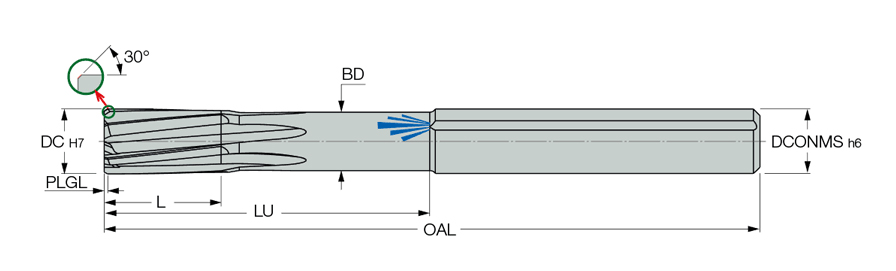

| Cutting Diameter (DC) | 4.5 mm | Coating | evotec for reamers UOP |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Shank Type | Round |
| Usable Length (LU) | 40 mm | Flute Type | Straight |
| Cutting Edge Length (L) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Point Length (PL) | 0.9 mm |
| Overall Length (OAL) | 76 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Decimal Equivalent | .5640 |
| Flute Helix Angle (FHA) | 0 Degrees | Body Diameter (BD) | 3.4 mm |
| Grade | EVO |
Product Features
| Family Description | MTR UOP, Helical flute PVD coated solid carbide reamers with cylindrical shank and coolant grooves for high speed reaming. Unequal pitch for chatter dampening | Country of Origin | Italy |

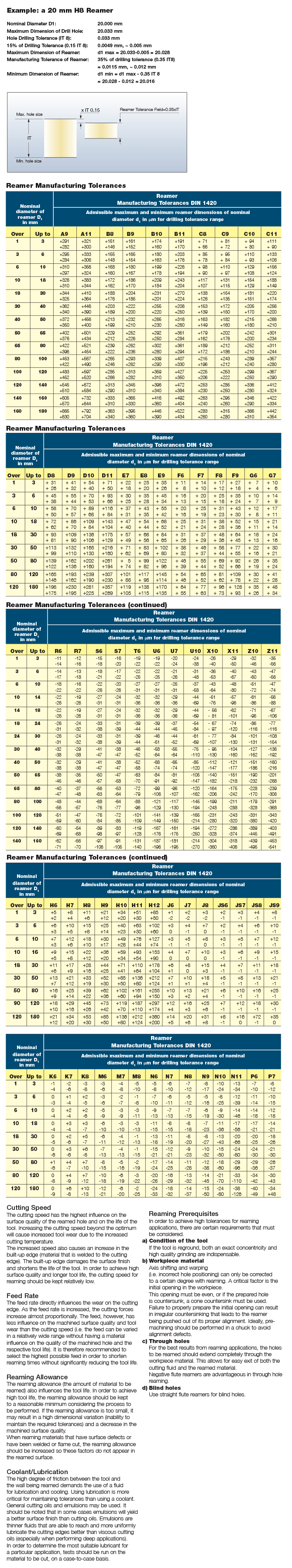

| Remarks | EVO is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology. Hole tolerance: H7 manufacturing tolerance according to DIN 1420 For machining recommendations, click on More Info |
Shipping Info
Package Weight
0.049
