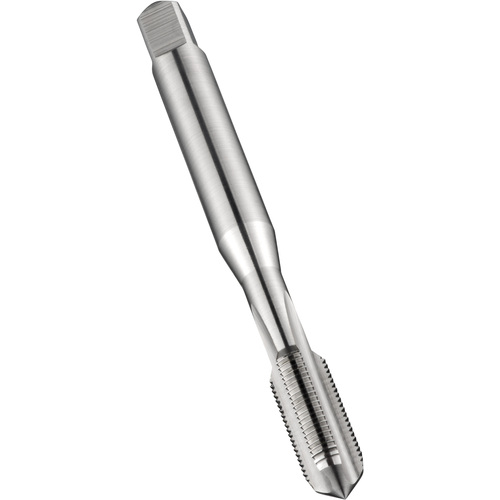

1-1/16-12 ST HSS Bottoming Tap-Bright E-code # E5701.1/16X12NO3
E-code # E5701.1/16X12NO3
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1-1/16″ | Tapping Prehole Diameter (Pre-hole) | 24.75 mm |
| Threads per Inch (TPI) | 12 | Flute Length | 37 mm |
| Thread Standard | UN | Flute Type | Straight |
| Overall Length (OAL) | 127 mm | Style | Bottoming |
| Thread Cutting Part Length (THL) | 37 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | E570 |
| Tool Type | Machine Tap | Thread Size | 1-1/16″ - 12 |
| Coating | Uncoated |
Product Features
| Family Description | E-code # E5701.1/16X12NO3 | Country of Origin | JP |
Shipping Info
Package Weight
.7054
